SharePoint 2010 Workflow: Dealing with events in custom activities

Introduction

In the past few months I've been responsible for designing a workflow solution to support the automation of an asset management acquisitions process for a customer in the US. The last time I worked on a large workflow project, which touched thousands of users and had a truly global reach, was back in December 2009. I was a little bit rusty and have spent one or two days in the last month getting back up to speed. In this blog post, I'd like to talk about a common scenario which will prove as much of a reference for me in the future as anything else.

The common scenario I'd like to deal with is one where there is a requirement to assign a task to users who will only be known at runtime. Further, when these tasks are assigned, depending upon the actual task/form which is in use, you may want to perform different actions.


The Requirements

  • Provide task management for 1 or more users who will only be known at runtime


  • Provide a customized summary report to an individual, who will only be known at runtime, which outlines what tasks were assigned, to whom, and what their response was.

If you are familiar with the MOSS 2007 ECM Starter Kit workflow examples then you have probably seen the widely referenced WssTaskActivity custom activity within the ECM Activities solution. This solution was fine for MOSS 2007 but I actually found it a little heavy in terms of code for a lot of scenarios. A much nicer, cleaner and relevent example is the one which has been put together by Scott Hillier. I would point you to his article at

http://www.shillier.com/archive/2010/08/04/CreatingMultipleandParallelTasks%20inSharePoint2010Workflow.aspx


and recommend you read that and become comfortable with the concepts before reading this article further.


The Problem

The main advantage of custom activities in workflow is to increase reusability and repeatability. Using the SPTaskActivity custom activity from the article posted above is a great starting point, but there's something missing. Quite often, what we need to do is provide some notification in the workflow which hosts the custom activity that something has happened e.g. a task has changed. It is possible to deal with all events relating to the custom activity within the custom activity itself but this doesn't provide reusability. We need to achieve this within the host.


The Solution

The solution to this problem lies in the use of DependencyProperty objects to raise a custom event within the host workflow.


  • Create a custom EventArgs class

  • Create a DependencyProperty which points to a generic EventHandler

  • Raise the event at the appropriate point e.g. onTaskChanged_Invoked from within your Custom Activity

  • Handle the event within your host workflow

Create a custom EventArgs class

First we need to decide what information we need to pass back to the host. For the purposes of this blog post, I've used the TaskEventArgs class from the MOSS 2007 ECM starter kit. The class is very simple and is given below. Create a new class file within your workflow project and paste this code.

[Serializable()]
public class TaskEventArgs : EventArgs
{
#region Private Variables

private SPWorkflowTaskProperties beforeProperties = null;
private SPWorkflowTaskProperties afterProperties = null;
private bool result = false;
private string executor = null;
private ExternalDataEventArgs externalArgs = null;

#endregion

#region Public Properties

public SPWorkflowTaskProperties BeforeProperties
{
get
{
return this.beforeProperties;
}
set
{
this.beforeProperties = value;
}
}

public SPWorkflowTaskProperties AfterProperties
{
get
{
return this.afterProperties;
}
set
{
this.afterProperties = value;
}
}

public bool Result
{
get
{
return this.result;
}
set
{
this.result = value;
}
}

public string Executor
{
get
{
return this.executor;
}
set
{
this.executor = value;
}
}

public ExternalDataEventArgs ExternalArgs
{
get
{
return this.externalArgs;
}
set
{
this.externalArgs = value;
}
}

#endregion

#region Constructors

public TaskEventArgs(SPWorkflowTaskProperties before, SPWorkflowTaskProperties after, string executor, ExternalDataEventArgs externalArgs)
{
this.beforeProperties = before;
this.afterProperties = after;
this.executor = executor;
this.externalArgs = externalArgs;
}

#endregion

}



Create a DependencyProperty which points to a generic EventHandler

This is pretty simple, and we can use code snippets to create this for us. You will want to ensure you specify that it is a generic EventHandler based on the TaskEventArgs class you've previously added to your workflow project.

public static DependencyProperty InvokeEvent = DependencyProperty.Register("Invoke", typeof(EventHandler<TaskEventArgs>), typeof(SPTaskActivity));

[Description("Invoke")]
[Category("Invoke Category")]
[Browsable(true)]
[DesignerSerializationVisibility(DesignerSerializationVisibility.Visible)]
public event EventHandler<TaskEventArgs> Invoke
{
add
{
base.AddHandler(SPTaskActivity.InvokeEvent, value);
}
remove
{
base.RemoveHandler(SPTaskActivity.InvokeEvent, value);
}
}

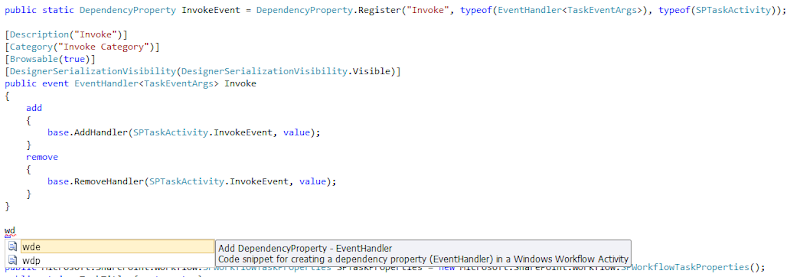

The result should look something like the below






Raise the event at the appropriate point e.g. onTaskChanged_Invoked from within your Custom Activity

The next thing we need to do is actually raise this event. In this instance, I wanted the Custom Activity to really do nothing when onSPTaskChanged_Invoked was fired, I needed this to be handled externally by the host workflow. We can achieve this by first raising the event in the following way:

private void onSPTaskChanged_Invoked(object sender, ExternalDataEventArgs e)
{
TaskEventArgs args = new TaskEventArgs(SPBeforeProperties,
SPAfterProperties, null, e);

base.RaiseGenericEvent<TaskEventArgs>(InvokeEvent, this, args);
}

Handle the event within your host workflow

We then need to handle the event in the workflow. Inspect the properties of your custom activity and notice you now have a new event which you can handle.

private void InvokedFromSPTaskActivity(object sender, TaskEventArgs e)
{
bool result = Boolean.Parse(e.AfterProperties.ExtendedProperties["Result"].ToString());
}

The result should look something like the below:





Summary

We have seen how we can leverage a DependencyProperty based generic EventHandler to add more reusability and flexibility to our custom activities within workflow. This is an important technique and one that, at first, may not seem straight-forward but is surprisingly simple.

Thursday, May 5, 2011

Deploying InfoPath 2010 forms for custom workflow with SharePoint 2010 and Visual Studio 2010

I've spent a little time recently structuring a solution in Visual Studio and TFS for an upcoming project that relies heavily on workflow. There are a couple of nuances that I thought I'd document given that the information out there at present seems fragmented at best.

The aim of this blog post is to provide guidance on how to structure a Visual Studio 2010 SharePoint workflow project that includes the deployment of InfoPath forms. This article will not repeat advice which is already in abundance that relates to core workflow development concepts. I assume you're familiar with writing custom workflow in Visual Studio 2008 and MOSS 2007.

Above we see the default solution structure for a state machine workflow.

Add a new Module named "InfopathForms"

You can remove the "Sample.txt" placeholder file. When you do this, notice that Elements.xml for the module will update automatically.


Add your InfoPath form to your InfopathForms module


Double check to ensure that the "Deployment Type" property of your InfoPath form is set to Element File and that the path is "InfopathForms\".

Your elements .xml file should now look like the following

<?xml version="1.0" encoding="utf-8"?>

<Elements xmlns="http://schemas.microsoft.com/sharepoint/">

<Module Name="InfopathForms">

<File Path="InfopathForms\InitiationForm.xsn" Url="InfopathForms/InitiationForm.xsn" />

</Module>

</Elements>


By default, your feature.xml will look like the following:

<?xml version="1.0" encoding="utf-8" ?>

<Feature xmlns="http://schemas.microsoft.com/sharepoint/">

<Properties>

<Property Key="GloballyAvailable" Value="true" />

</Properties>

</Feature>


Now we need to modify our feature.xml to register the location of the forms we want to use and set the correct feature receiver. If you were used to using VSeWSS when developing workflows for MOSS 2007, these steps will have been undertaken for you automatically, you may have had to do little more than modify the path for the RegisterForms property below.

<?xml version="1.0" encoding="utf-8" ?>

<Feature xmlns="http://schemas.microsoft.com/sharepoint/" ReceiverAssembly="Microsoft.Office.Workflow.Feature, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c"

ReceiverClass="Microsoft.Office.Workflow.Feature.WorkflowFeatureReceiver">

<Properties>

<Property Key="GloballyAvailable"Value="true" />

<Property Key="RegisterForms" Value="InfopathForms\*.xsn"/>

</Properties>

</Feature>



There are two additions here. The first is:

<Property Key="RegisterForms" Value="InfopathForms\*.xsn"/>

This tells our feature the location of the forms we want to deploy. In this case it is all of the .xsn files within the InfopathForms module.

The second modification is the feature receiver assembly and class:

ReceiverAssembly="Microsoft.Office.Workflow.Feature, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c"


ReceiverClass="Microsoft.Office.Workflow.Feature.WorkflowFeatureReceiver"

This is necessary in order for the forms to be present within the "Manage Form Templates" screen within Central Administration and is a necessary precursor to making your forms "Workflow Enabled".

At this point there is a ton of other work you need to do around building your workflow, registering your form URNs within the workflow elements file and any deserialization activities you need to do in order to take data from your initiation or association form into your workflow. None of this information is repeated here and I would point you towards MSDN and the numerous blog articles out there on these subjects.

Once you've deployed your solution, your form should now be registered in the correct location. Below we can see our IniitationForm at the top of the list within Central Administration.


Using Modules in this way to manage form templates means we simply need to drag and drop new xsn files into our Module and they will be automatically deployed with our solution. We still of course need to modify the workflow elements file to register the URNs etc but it's one less thing to think about and certainly makes deployment easier.

I hope you've found this article useful and that it saves you some time when transitioning from workflow development using VSeWSS in MOSS 2007 to Visual Studio 2010 with SharePoint 2010. Thanks for reading.

Wednesday, May 4, 2011

Migrating from Lotus Notes 8.5 to Microsoft SharePoint 2010: Real-world tales from the trenches

I've just published a new blog post on Nothing But SharePoint which outlines a real-world migration from Lotus Notes 8.5 to SharePoint 2010. I actually went live with this project on the day of the SharePoint 2010 global launch.

Read more here...
